VACUUM FEED PART NUMBERS
Old Premier New CPI
1/4" - 91200 6501800P55V401S
3/8" - 91201 6501800P55V601S
The CPI Model P55 pump is an updated version of the Premier Model P55 designed to retrofit Premier, Mega, McCord and Lincoln* lubricator boxes.
FEATURES
• One piece steel pump body
• Precision roller rocker assembly
• Pyrex sight glass with protective housing
• Precision internal and outlet check valves
• Modular cylinder design
• Weatherproof construction
• Furnished as original equipment by engine, pump and compressor manufacturers

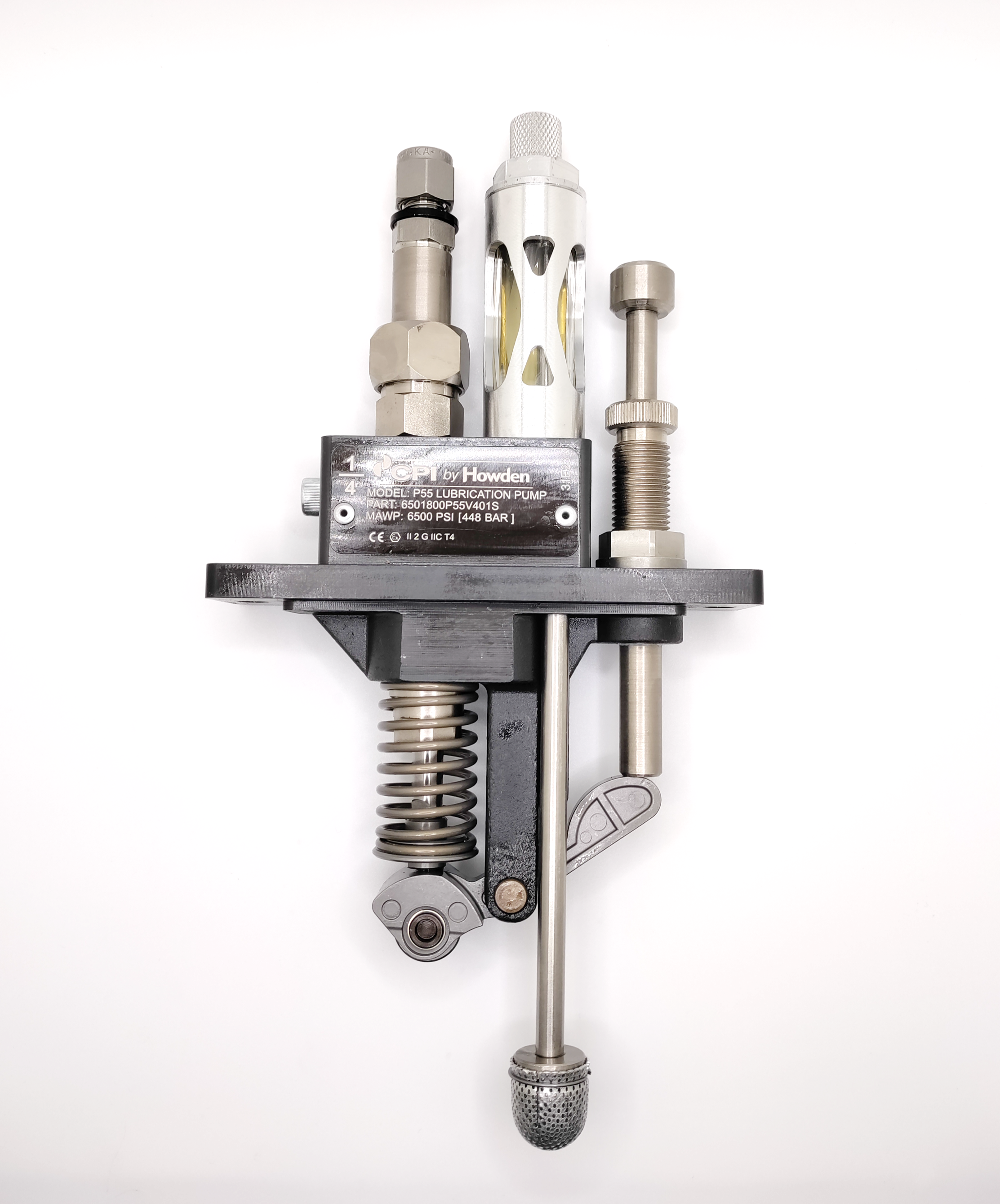

CPI/PREMIER MODEL P55 LUBRICATOR PUMP, 91200,91201 (VACUUM FEED, NEW STYLE)
TECHNICAL SPECIFICATIONS
LUBRICANT TYPE Mineral Based or Synthetic
OIL VISCOSITY 90 SUS - 8,000 SUS TEMPERATURE -20°F to 190°F (-29°C to 88°C)
OPERATING SPEED 4 rpm - 30 rpm
INLET / OUTLET SIZE CPI 1/8 ORB (1/8 NPT Compatible
CAMSHAFT SPEED 4 to 30 RPM
Maximum Operating Pressure:
- 3/16” PUMPS 7,500 psi (51.7 MPa, 517 bar)
- 1/4” PUMPS 6,500 psi (44.8 MPa, 448 bar)
- 3/8” PUMPS 3,500 psi (24.1 MPa, 241 bar)
